Hatchery Automation Equipment

  • Yunfeng Chick Counting System
Yunfeng Chick Counting System

Yunfeng Chick Counting System

  • Product description: Yunfeng Chick Counting System

30,000 doc/hour

Yunfeng chick couter system is a specially designed system, highly automated, manpower

saving, and advanced compared to other brands of Chick Counting Systems.

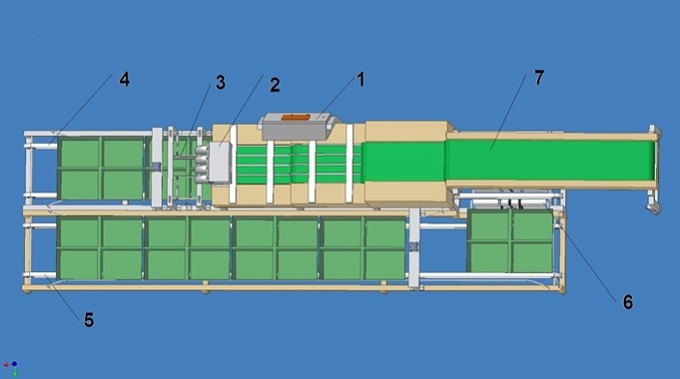

Name of main structures:

1. controller

5. chick box convey belt

2. seperating device

6. chick box shift device

3. left-right ballancer

7. chick supply belt

4. chick box supply belt

Advantages of Yunfeng Chick Counter:

Able to separate chicks into chick boxes with four segments (optional)

Chick supply belt hight adjustable

Space saving


Capacity: 30,000 doc/h

Accuracy: 99.7%

Electricity: 220V 50Hz Single phase/ or 380V 50Hz 3Phase

Power: 1.2kw

Size: L4.1m*W1.2m*H1.3m (not including chick supply belt)

Pneumatic air required

Number of chicks adjustable in controller

Workable for chick box with only one segments

More Products


1. Are you the manufacture or trading company?
We are the earliest incubator manufacturer in China. The company was founded in 1964 and started producing incubators since 1978.

2. Where is your factory located?
Our factory is located in Beijing, welcome to visit our factory at anytime!

3. What is the difference between incubator(setter) and hatcher?
Eggs are put inside incubator (setter) at the beginning, and moved to the hatcher for the last three days of incubation. For example, chicken eggs need 21 days to be hatched, for 1-18 days in incubator (setter), and 18-21 days in hatcher.

4. What is the difference between single-stage and multi-stage incubators?
Single-stage is filled one time during one incubation cycle, and all the eggs inside are at the same development stage.
Multi-stage incubators is filled part by part, a batch of eggs will be moved in and out every 3-7 days. and the eggs inside are at different development stage.

5. What is the price of your incubators?
Different capacity and specifications with different price. First please let us know those questions, thanks.
> For what kind of eggs?
>What capacity incubator and how many, or how many eggs to be hatched per week?
> Which type do you prefer between single-stage and multi-stage incubators?
> Where is the destination port?

6. What is the MOQ of your machine?
There is no MOQ, but pls contact us to confirm our production period.

7. What power supply does it require?
The standard large incubators are using 380V50Hz 3phase, and small models 220V50Hz single phase power,
Other voltage and frequency requirement for different area can be customized.

8. Does it need technician for installation?
Most of the incubators require installation except the machine capacity which is below 12,096 eggs.

9. What warranty I can get?
One-year warranty against defect, lifetime maintainence.
