Multi-Stage Tunnel Incubator

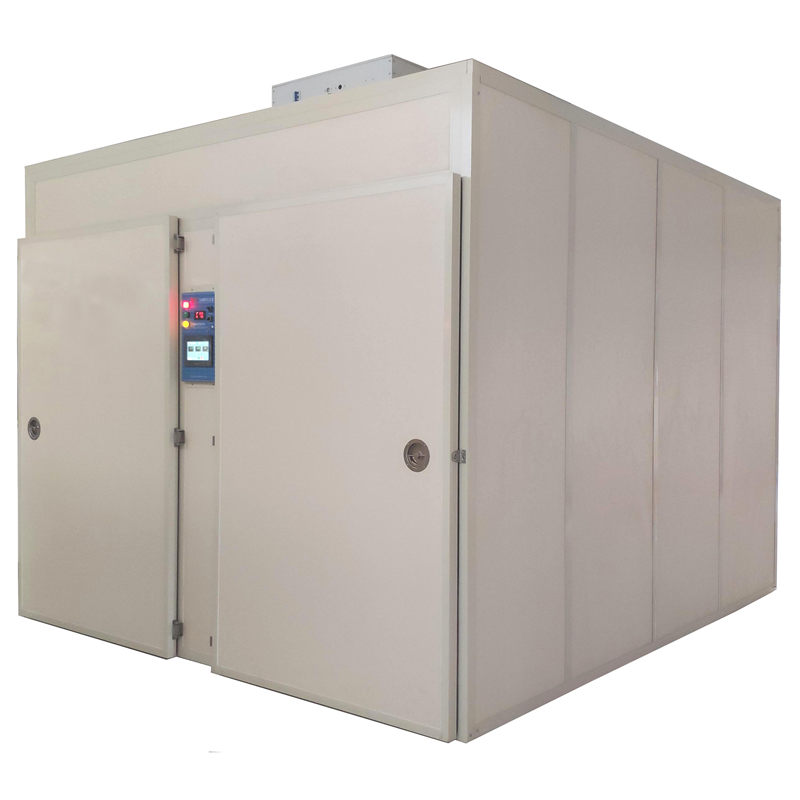

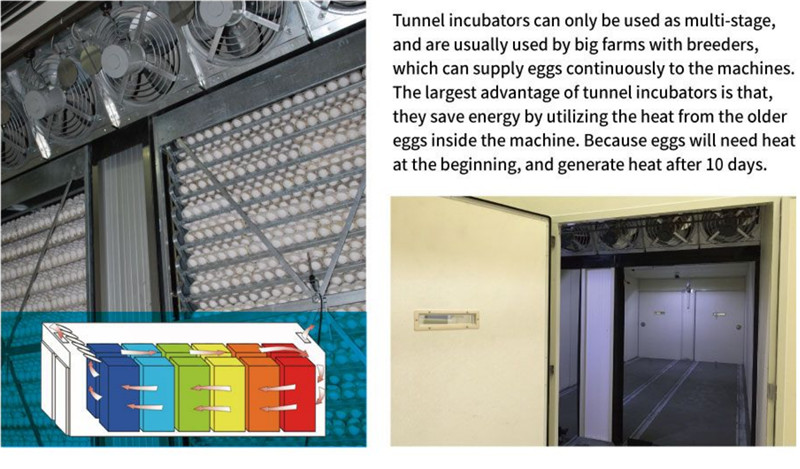

  • Product description: This is a Multi-Stage Egg Incubator, eggs load in one side, and move out another side, so called Tunnel egg incubator. It's extremely energy saving, by utilizing heat from old eggs to heat fresh eggs.

tunnel egg incubator-white back 1x1.jpg

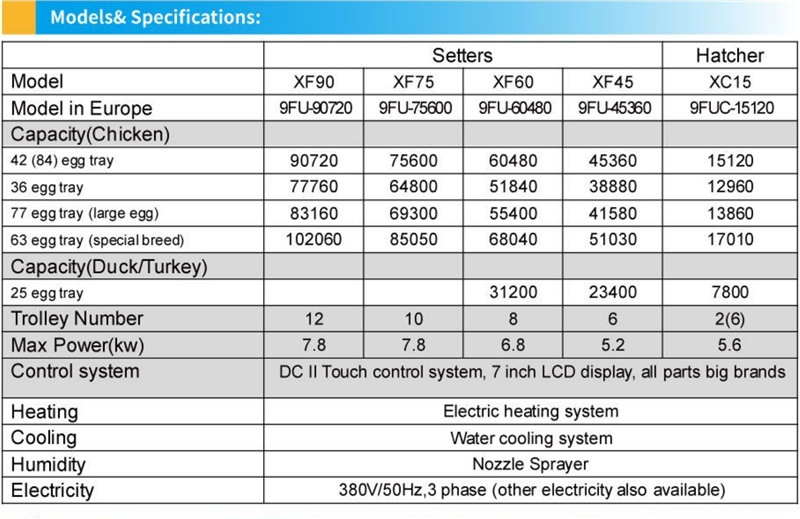

1. Egg capacity for setters: 90720, 76500, 60480, 45360 eggs;

2. Mulit-Stage, eggs load in one side and come out another side;

3. Extremely energy saving;

4. Egg capacity for hatcher: 15120 eggs.

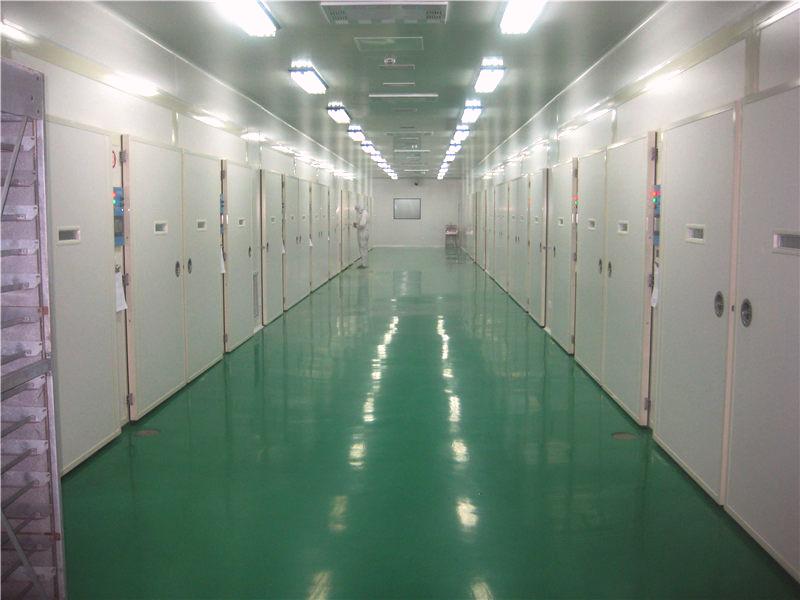

multistage incubator room.jpg


1. Extraordinarily Energy Saving

O-type air circulation design, realizing the air circulation with least motor power. Only 1.5kw motor power used for a capacity of more than 90,000 eggs.

A brilliant designed multistage incubation system, circulation air will bring heat from old eggs to the new eggs loaded, and reduce the heating system to minimum.

An average of less than 0.02kwh per egg for whole 21 days incubation period can be realized easily with this system.

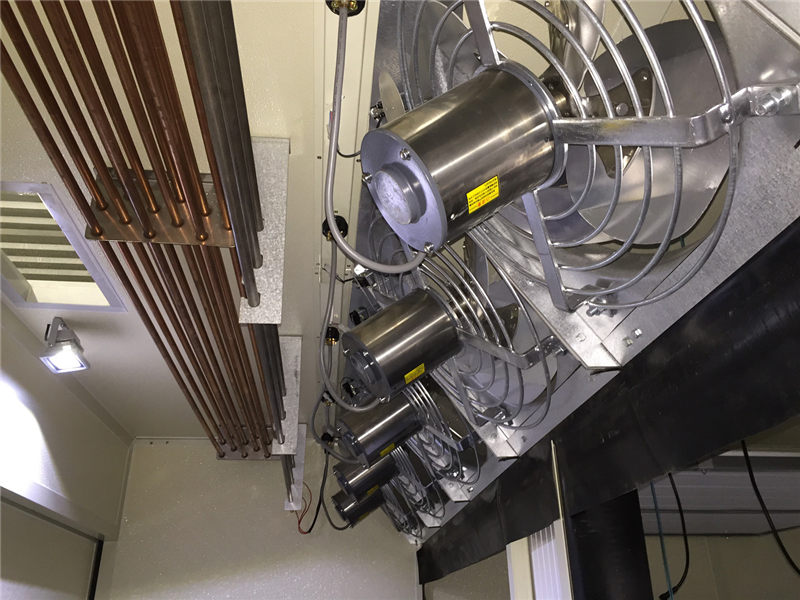

Setter Fan heater cooling.jpg

2. Easy operation with powerful functions

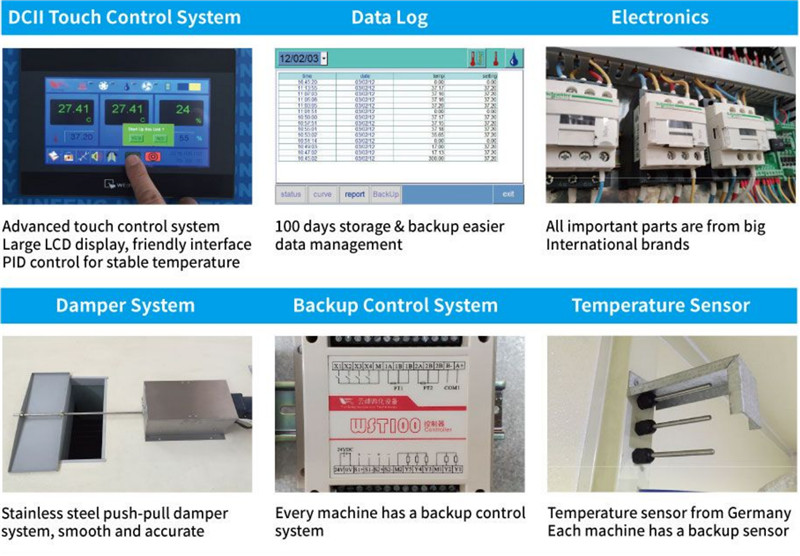

Touch control screen with Icons enables easy operation all the time.

A variety of world main languages, users can change according to their requirement.

Three level passwords management, giving different rights to workers and management. Advanced settings can be realized with password permit.

Pneumatic egg turning system, reliable, and easier cleaning than mechanical egg turning system.

hatcher chicks comes out.jpg

3. Longer life incubators with less maintaining and spare parts

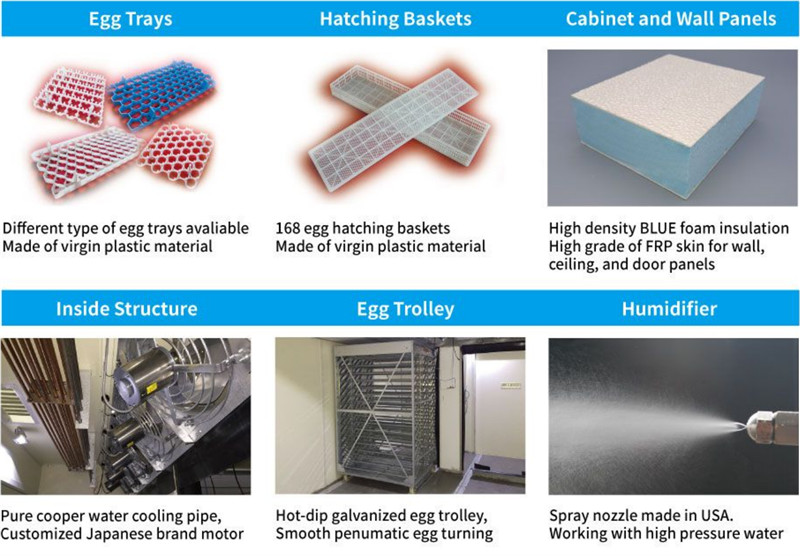

Selected metal materials with advanced anti-erosion ability for incubator trolleys and inside structures: SS304 stainless steel, 275g zinc coated steel, Hot-dip-galvanized steel, anodized or coated aluminum, allowing the metal parts can last at least 20 years.

Incubator body using premium quality FRP (fiber-glass material) skin, and the working life can be 50 years above.

Water proof insulation material for wall panels, with density level leading the industry, allowing the incubators to remain perfect insulation even after many years using.

Selected electric parts, from world famous brands. Better quality parts reduced maintaining cost and spareparts cost in the future.
